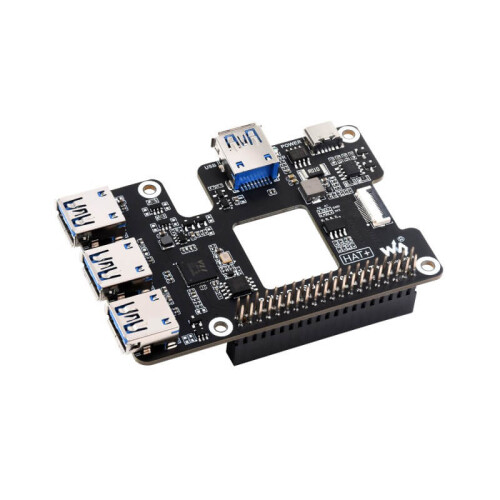

Waveshare PCIe to USB 3.2 Gen 1 HAT+ for Raspberry Pi 5

The Waveshare PCIe to USB Hub HAT for your Raspberry Pi provides you with four additional USB 3.2 Gen 1 port for operating several peripheral devices such as solid state drive, flash drives or even game pads! The hub also follows HAT+ standard for easy implementation

22,00 €
incl. 20% VAT , plus shipping costs
  • 9 in stock
Description

The Waveshare PCIe to USB Hub HAT for your Raspberry Pi provides you with four additional USB 3.2 Gen 1 port for operating several peripheral devices such as solid state drive, flash drives or even game pads! The hub also follows HAT+ standard for easy implementation

Note: Raspberry Pi 5 and its active cooler sold seperately.

Features

  • Provides 4 × high speed USB 3.2 Gen 1 ports
  • Only suitable with Raspberry Pi 5
  • Connection via 16Pin PCI-e FFC cable
  • Board design includes resevered airflow vent and spacers for operating the active cooler
  • EEPROM chip for saving HAT ID + product info
  • Supports real-time monitoring via of USB power status via Software

Specifications

  • Power monitoring IC: INA219
  • Flash Chip: MX25L3206
  • USB 3.0 Host controller: VL805
  • PCI-e interface generation: Gen 2 (also operable with Gen 3 but no perfomance difference)

Board Layout

  1. Raspberry Pi GPIO header
  2. USB 3.2 Gen1 expanded ports
  3. INA219 (Power monitoring chip)
  4. USB type-C connector for external 5V DC power supply
  5. PWR LED (Power indicator)
  6. MX25L3206 (FLASH chip)
  7. VL805 (USB 3.0 Host controller for PCIe)
  8. PCIe interface

Scope of delivery

  • 1 × PCIe to USB 3.2 Hub HAT+
  • 1 ×16PIN FCC PCIe data cable

    • Documentation

    WIKI: PCIe TO USB 3.2 Gen1 HAT+
