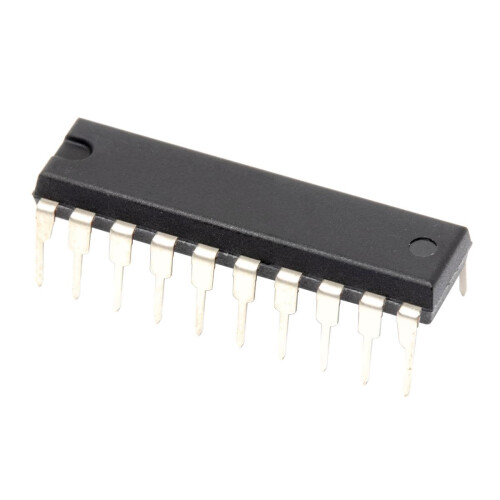

These octal edge-triggered D-type flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The eight flip-flops enter data on the low-to-high transition of the clock (CLK) input.
A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components.
Specifications
- Logic Type: D-Type Flip-Flop
- Polarity: Non-Inverting
- Input Type: CMOS
- Output Type: 3-State
- Supply Voltage - 2V - 6V
- Low Level Output Current: 7.8 mA
- Quiescent Current: 8 uA
