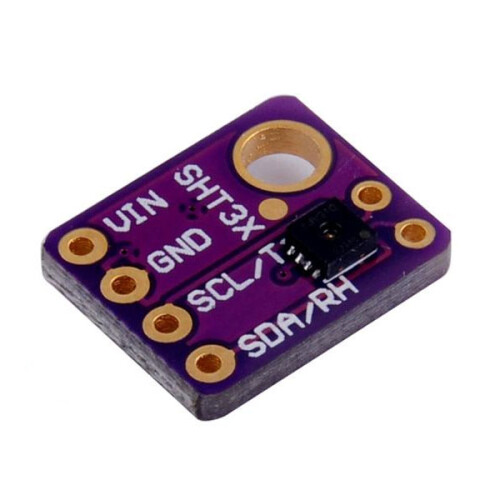

Sensiron SHT31-D Temperature and Humidity Sensor Breakout

The SHT3x builds on a completely new and optimized CMOSens® chip, which allows for increased reliability and improved accuracy specifications. The SHT3x offers a range of new features, such as enhanced signal processing, two distinctive and user-selectable I2C addresses, an alert mode with programmable humidity and temperature limits, and communication speeds of up to 1 MHz.
12,00 €
inkl. 20% USt. , zzgl. Versand
Alter Preis: 14,54 €
  • 6 auf Lager
Beschreibung

The SHT3x builds on a completely new and optimized CMOSens® chip, which allows for increased reliability and improved accuracy specifications. The SHT3x offers a range of new features, such as enhanced signal processing, two distinctive and user-selectable I2C addresses, an alert mode with programmable humidity and temperature limits, and communication speeds of up to 1 MHz.

Features:

  • Humidity Accuracy %RH: ±2
  • Temperature °C : ±0.3
  • Supply Voltage Range V: 2.4 to 5.5
  • Interface: I2C digital, analog voltage
  • Energy consumption: 4.8µW (at 2.4 V, low repeatability, 1 measurement / s)
  • RH operating range: 0 - 100% RH
  • T operating range: -40 to +125°C (-40 to +257°F)
  • RH response time: 8 sec (tau63%)

Downloads:
