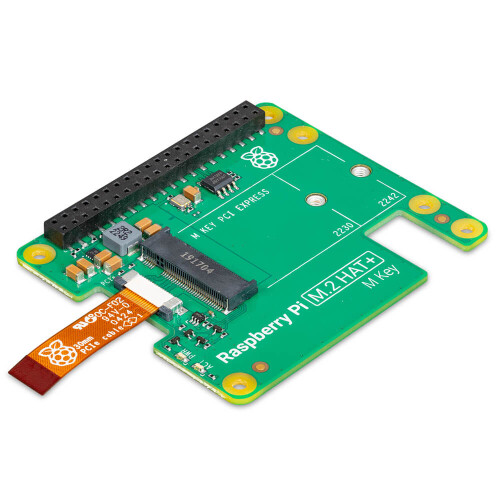

The official Raspberry Pi M.2 HAT+ Adapter for your Raspberry Pi 5 increases your storage memory easily by integrating an M.2 SSD with a M key edge connector. It supports NVMe M.2 Solid State Drives in the sizes 2230 & 22420 with high-speed reading / writing Speeds (up to 500MB/s peak transfer rate) and connects via a short 16PIN cable based on 16PIN PCIe Interface of the Raspberry Pi 5. It can be easily intergrated into the official Raspberry Pi 5 case with fan white/red or Raspberry Pi 5 case with fan black with the Raspberry Pi 5 Active Cooler already inside. The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. For further information, please refer to the documetation page of this product.
Specification
- Supported hard disk type: M.2 NVMe SSD with M-Key edge connector
- Protocol interface: PCIe (supports Gen 2, experimentally up to Gen 3)
- Transfer speed: up to 500MB per second
- Supported SSD sizes: 2230 & 2242
- Supplies SSD's with max. 3A current
- Onboard Dual LED Indicators (ACT & PWR)
- Dimensions (max.): 65 × 56.5mm
Scope of delivery
- 1 × Raspberry Pi PCIe to M.2 HAT+ M-Key
- 1 × 2*20 Pin 16mm stacking header
- 1 × PCIe 16P-Cable-40mm
- 1 × Standoff spacers & Screws to secure the Spacers and M.2 SSD
Documentation
