Beschreibung

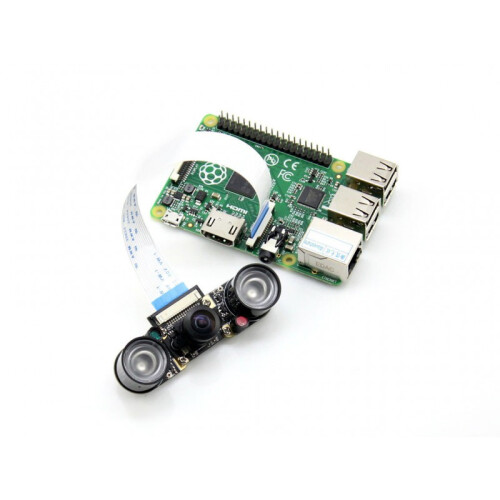

The Raspberry Pi 5MP Camera with Fisheye Lens and Night Vision helps you to view an angle of 160 degrees even in the night with the infrared LEDs.
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : adjustable
- Field of View : 160 degree (while other normal cameras are typically 72 degree)
- Diagonal angle : 160 degree
- Horizontal angle : 120 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 25mm x 24mm
Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Downloads
Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(H)
