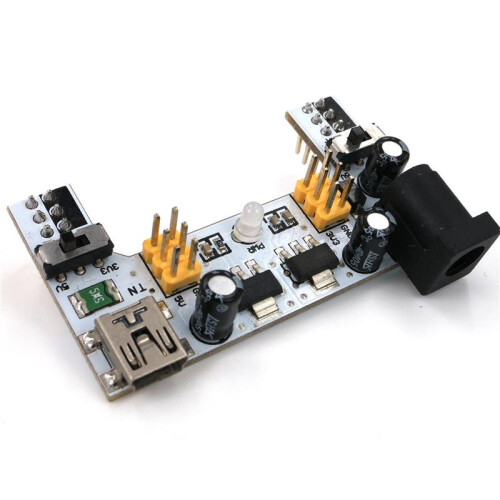

MB102 Breadboard power supply - 2 channel

The innovative concave design of the MB102 module maximizes space efficiency on the breadboard, allowing you to choose between a voltage of 5V or 3.3V. It can be powered through USB or a DC jack, and the fluctuation of two independent controls enables switching between 0V, 3.3V, and 5V. Onboard, there are also two 3.3V & 5V DC output pin headers, providing convenient use for external connections
5,50 €
incl. 20% VAT , plus shipping costs
  • Out of stock
Description

The innovative concave design of the MB102 module maximizes space efficiency on the breadboard, allowing you to choose between a voltage of 5V or 3.3V. It can be powered through USB or a DC jack, and the fluctuation of two independent controls enables switching between 0V, 3.3V, and 5V. Onboard, there are also two 3.3V & 5V DC output pin headers, providing convenient use for external connections.

Specifications

  • Input Voltage: 6.5-12V (DC) or USB power
  • Output Voltage: switchable between 3.3V/5V
  • Maximum Output Current: <700mA
  • Size: 5.3cm x 3.5cm
