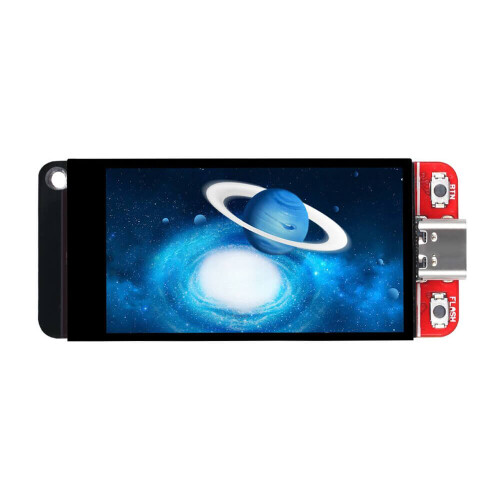

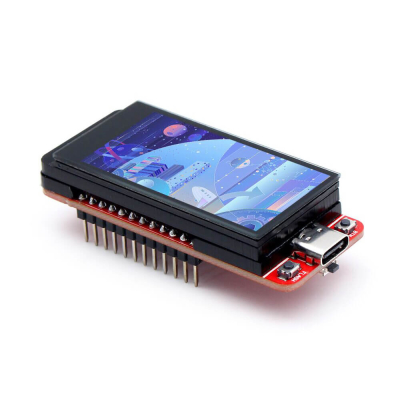

MaTouch 1.9“ TFT Breakout ESP32-S3

The new version of the Makerfabs MaTouch 1.9” board, featuring the ESP32 S3 controller, has addressed user feedback by breaking out all GPIO pins for easier prototyping and integration with other boards
30,00 €
incl. 20% VAT , plus shipping costs
  • 3 in stock
Description

The new version of the Makerfabs MaTouch 1.9” board, featuring the ESP32 S3 controller, has addressed user feedback by breaking out all GPIO pins for easier prototyping and integration with other boards. Here's an overview of the updated features and specifications:

Key Updates:

  • Breakout GPIO Pins: All GPIO pins are now broken out for easy prototyping with a breadboard or for use as a controller when inserted into other boards.

Specifications:

  • Controller: ESP32 S3
  • Wireless: WiFi & Bluetooth 5.0
  • LCD: 1.9", 320x170 resolution, ST7789V2 driver
  • LCD Interface: 8 bit 8080
  • Touch Panel Driver: CST816D
  • USB: USB Native, Type C
  • Power Supply:
    • USB Type C 5.0V (4.0V~5.25V)
    • 3.7V LiPo battery
  • Buttons: Flash button and reset button
  • MicroSD Slot: Yes
  • Arduino Support: Yes
  • MicroPython Support: Yes
  • Operating Temperature: 40℃ to +85℃

Video

Useful Links:
