Description

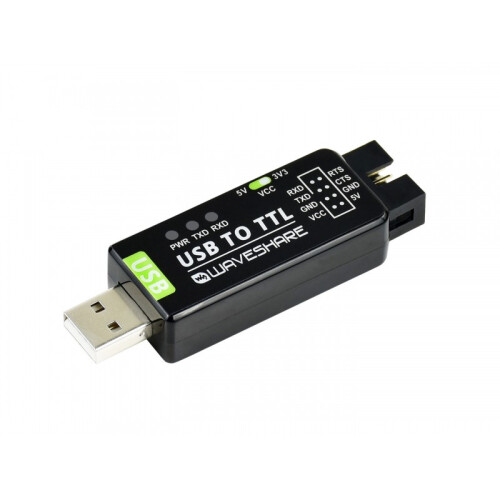

The Waveshare Industrial USB to TTL Converter allows stable data transmissions up to 3Mbps thanks to the FT232RNL chip onboard, multiple protection systems and also supports multiple operating systems. Refer the documentation page for this product at the end of the page for further information.
Features
- Chipset: FT232RNL
- System Protections:
- ESD prodection
- Resettable fuse
- TTL protection
-
Supported OS:
- Windows 7 / 8 / 8.1 / 10 / 11
- MacOS
- Linux
- Android
- Windows CE
Specifications
| PRODUCT CATEGORY | Industrial USB TO TTL converter | HOST PORT | USB |
|---|---|---|---|
| DATA RATE | 300bps ~ 3Mbps | DEVICE PORT | UART |
| USB PORT | Connector: USB-A Protection: resettable fuse, ESD protection |
||
| UART PORT | Connector: 8PIN fool-proof header Protection: IO protection diode |
||
| INDICATOR | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
||
USB Signal & Pinouts Definition
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) |
| RXD | Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) |
Scope of delivery
- 1 × Industrial USB to TTL
- 1 × 8PIN fool-proof wire
