Description

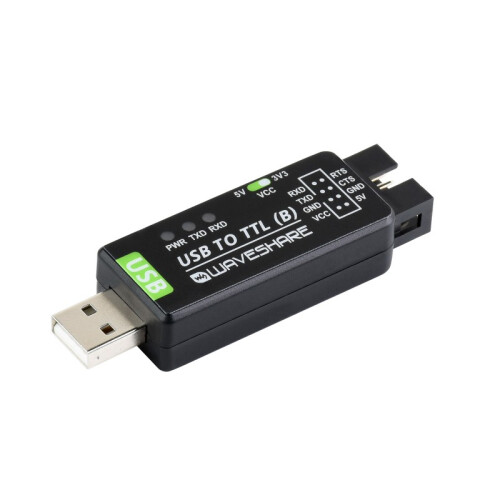

The Waveshare Industrial USB to TTL Converter Type B allows stable data transmissions up to 6Mbps thanks to the integrated CH343G chip, multiple protection systems, and supports multiple operating systems. Further information can be found in the documentation for this product.
Features
- Chipset: CH343G
- System Protection:
- ESD protection
- Resettable fuse
- TTL protection
- Logic switch for 3.3V and 5V environments
-
Supported OS:
- Windows 7 / 8 / 8.1 / 10 / 11
- MacOS
- Linux
- Android
- Windows CE
Specifications
| PRODUCT CATEGORY | Industrial USB to TTL Converter | HOST PORT | USB |
|---|---|---|---|
| DATA RATE | 50bps ~ 6Mbps | DEVICE PORT | UART |
| USB PORT | Connector: USB-A Protection: Resettable fuse, ESD protection |
||
| UART PORT | Connector: 8PIN fool-proof header Protection: IO protection diode |
||
| INDICATOR | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
||
USB Signal & Pinouts Definition
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX |
| RXD | Connecting to MCU.TX |
| RTS | Connecting to MCU.CTS |
| CTS | Connecting to MCU.RTS |
Scope of delivery
- 1 × Industrial USB to TTL
- 1 × 8PIN fool-proof cable
