Description

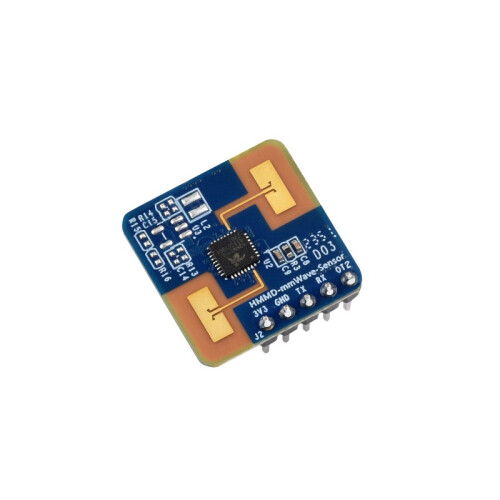

The HMMD-mmWave sensor is a sensor for human micro-movements that utilizes Frequency Modulated Continuous Wave (FMCW) technology to detect and identify moving, stationary, and resting human bodies. By combining radar signal processing with precise algorithms for human detection and distance measurement, it supports independent sensitivity configuration for each area to improve interference resistance. Due to its compact size, low power consumption, and easy integration, it is ideal for AIoT scenarios such as smart home, intelligent security, smart business, and smart lighting.
Specifications
- HARDWARE
- Frequency Band: 24~24.25GHz
- Bandwidth: 0.25GHz
- Modulation: FMCW
- Power Supply: 3.3V
- Output Interface: UART & GPIO
- UART Baudrate: 115200bps (Standard)
- Operating Temperature: -40~85℃
- Dimensions: 20×20mm
- SYSTEM PERFORMANCE
- Detection Range (wall-mounted): Moving human target: 10m; Micro-movement human target: 6m
- Detection Range (ceiling-mounted): Moving human target: 5m; Micro-movement human target: 4m
- Detection Range Resolution: 0.7m
- Detection Angle: ±60°
- Detection Accuracy: 0.15m (moving target within 10m radial distance from radar)
- Average Operating Current: 50mA
- Data Update Cycle: 100ms
Documents
HMMD-mmWave-Sensor - WIKI
