Beschreibung

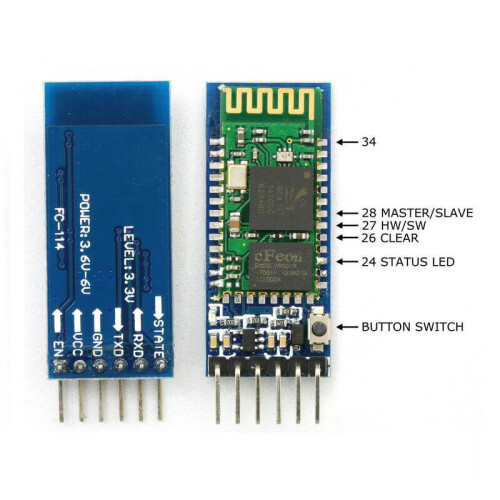

HC-05 Bluetooth Module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband.
It uses CSR Bluecore04-External single chip Bluetooth system with CMOS technology and with AFH(Ad aptive Frequency Hopping Feature). It has the footprint as small as 12.7mmx27mm. Hope it will simplify your overall design/development cycle.
Specifications
- Typical-80dBm sensitivity
- Up to +4dBm RF transmit power
- PIO control
- UART interface with programmable baud rate
- With integrated antenna
- With edge connector
- Master / Slave
