Description

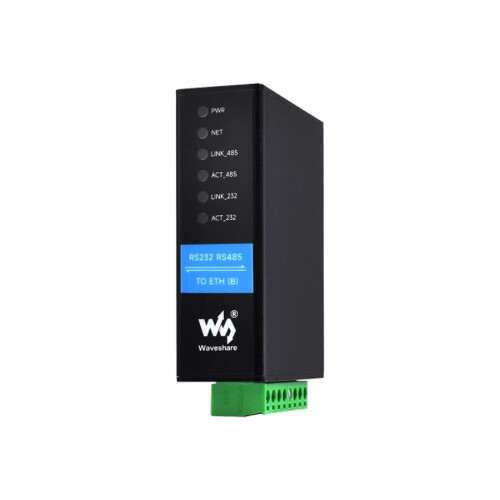

The Dual-Channel RS232 & RS485 Device Data Acquisition Server, specially designed for industrial applications, combines multiple functions in one compact housing, including serial server, Modbus gateway, MQTT gateway, RS232 & RS485 to JSON, etc. Furthermore, both channels can be used simultaneously and two Ethernet ports (PoE ) can be used for versatile operation thanks to multiple power sockets (PoE as well as screw terminals). Due to its slim and robust design, there are hardly any limits to its use.
Specifications
| PRODUCT | RS232 TO POE ETH (B) | |
|---|---|---|
| Product Type | Serial server, Modbus Gateway, MQTT Gateway | |
| Basic Function | Bi-directional transparent data transmission between RS232 and Ethernet | |
| Communication interface | RS232 port × 1, RS485 × 1, Ethernet port × 2 | |
| Power supply | 6 ~ 45V DC screw terminal, DC 5.5mm jack power port or PoE port | |
| Isolation Protection | Power isolation, Signal isolation | |
| COMMUNICATION | ||
Ethernet
| RJ45 with PoE support, support IEEE 802.3af standard |
|
|
| 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection | ||
| Serial port | Isolated RS232 AND RS485 (both channels recieve and transmit independently and simultaneously) | |
| SERIAL SPECIFICATION | ||
| Baudrate | 300 ~ 115200 bps | |
| Parity bit | none, odd, even, mark, space | |
| Data bit | 5 ~ 9 bits | |
| Flow control | N/A | |
| SOFTWARE | ||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | |
| Configuration | host, web browser, device management functions library | |
| Communication method | TCP/IP direct communication, VCOM | |
| Operating mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast | |
| OTHERS | ||
| Operating temperature | -40℃ ~ 85℃ | |
| Humidity range | 5% ~ 95% relative humidity | |
| Dimensions | L × W × H: 78 × 72.5 × 24.2mm | |
