Beschreibung

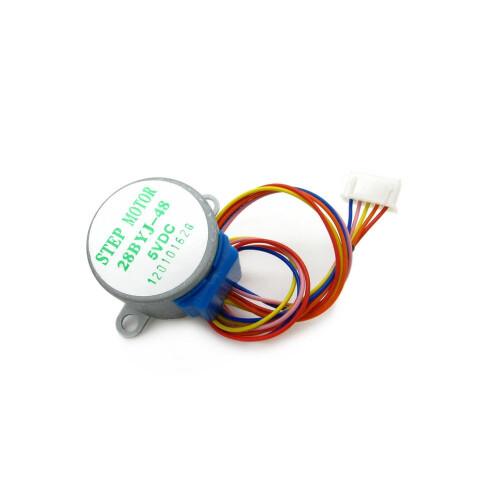

Mainly used in Air Conditioner Louver, Small Cooling/Heating Fan etc., Stable and all technic parameters are qualified for national electronic standard of SJ/T10689-95.
Specifications
- Rated voltage 5VDC
- Number of Pole 4
- Speed Variation Ratio 1/64
- Stride Angle 5.625¡ /64
- DC resistance 200O±7%(25?)
- Idle In-traction Frequency >600Hz
- Idle Out-traction Frequency >1000Hz
- In-traction Torque >34.3mN.m(120Hz)
- Self-positioning Tor >34.3mN.m
- Insulated resistance >10MO(500V)
- Insulated electricity power 600VAC/1mA/1s
- Insulation grade A
- Rise in Temperature <40K(120Hz)
- Noise <40dB(120Hz,No load,10cm)
| Phase | 4 |
| Step Angle | 5.625¡ |
| Step Distance | NULL |
| Motor Lengtd | 28mm |
| Rated Voltage | No |
| Rated Current | NULL |
| Phase Resistance | 300O |
| Phase Inductance | NULL |
| Holding Torque | NULL |
| Detent Torque | 29.4mN.m |
| Rotor Inertia | NULL |
| Lead Wire | 5 |
| Weight | 50.00g |
| Model | IM120723014 |
