Description
Overview

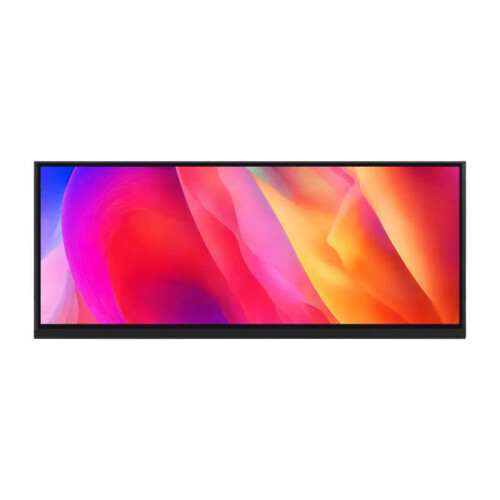

The Waveshare 12.3″ IPS touch display with in-cell technology delivers a slim, lightweight module featuring 1920×720 resolution, 178° wide viewing and responsive capacitive 10-point touch (OS-dependent). Video input via HDMI or a full-featured USB-C port; touch over USB-C. Backlight is adjustable through OSD and DDC/CI.
Key Features
- 12.3″ IPS, 1920×720 ultra-wide, 178° viewing angle
- In-cell touch for a thinner, lighter design with narrow bezel
- 10-point touch (OS-dependent)
- Brightness ~300 cd/m², OSD & DDC/CI control
- Video: HDMI or USB-C (DP Alt-Mode)
- Audio out: 3.5-mm jack & 24-pin header
Technical Specs
- Panel: IPS, in-cell touch
- Resolution: 1920×720, ultra-wide aspect
- Viewing Angle: 178°
- Touch: capacitive, up to 10 points (OS-dependent), Port: USB-C
- Backlight: ~300 cd/m², DDC/CI & OSD
- Inputs: HDMI; USB-C (requires DP Alt-Mode)
- Audio: 3.5-mm jack, 24-pin header
Device & OS Support
- Raspberry Pi: Raspberry Pi OS (10-point), Ubuntu/Kali/WIN10 IoT (single-point), Retropie (driver-free); all Pi versions
- Windows 7/8/8.1/10/11: 10-point, driver-free
- Linux/Jetson: Ubuntu (single-point), Jetson Nano/TX2/Xavier NX/Orin
- Smartphones: Full-featured USB-C with DP Alt-Mode for wired projection
In the Box
- 1× 12.3″ in-cell touch display (HDMI/USB-C)
Notes
- Photos showing hosts/controller boards are for reference; not included.
- USB-C video requires DP Alt-Mode on the host device.
- SKU: 28481 | Part No.: 12.3inch 1920x720 LCD | Brand: Waveshare
